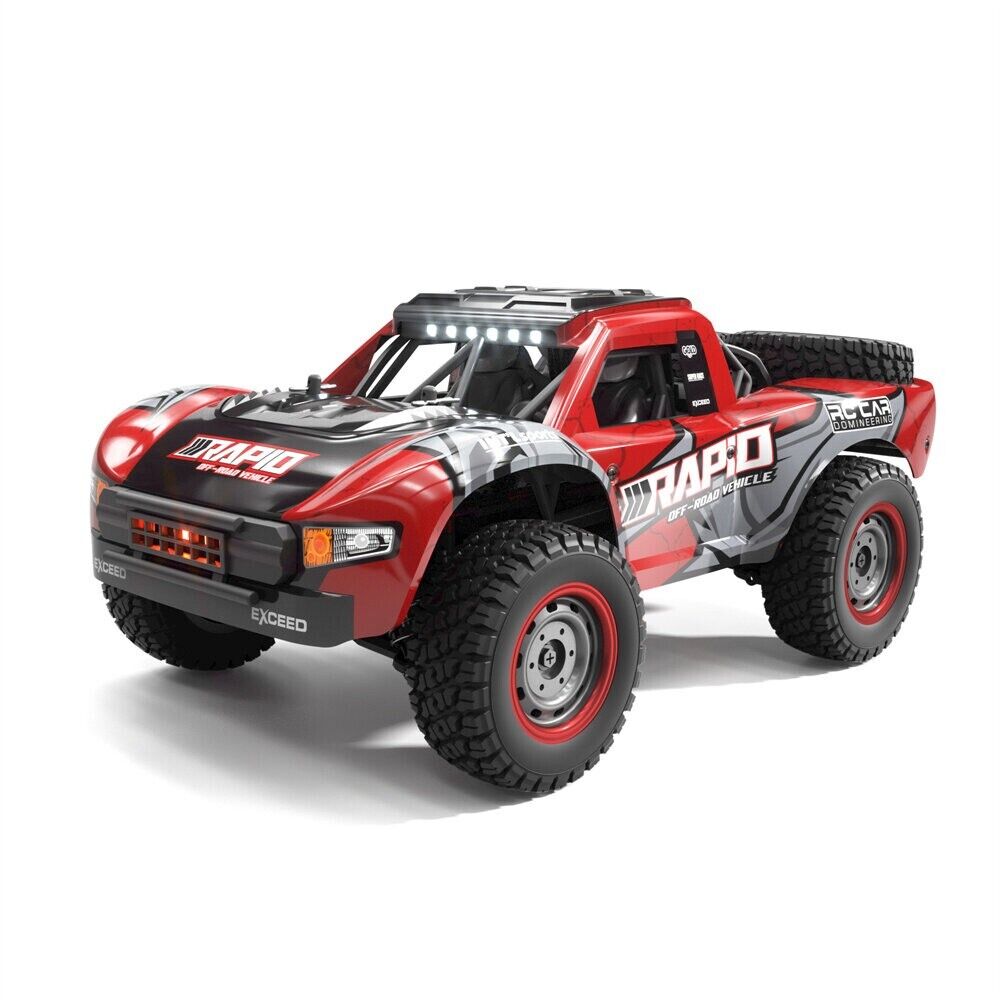

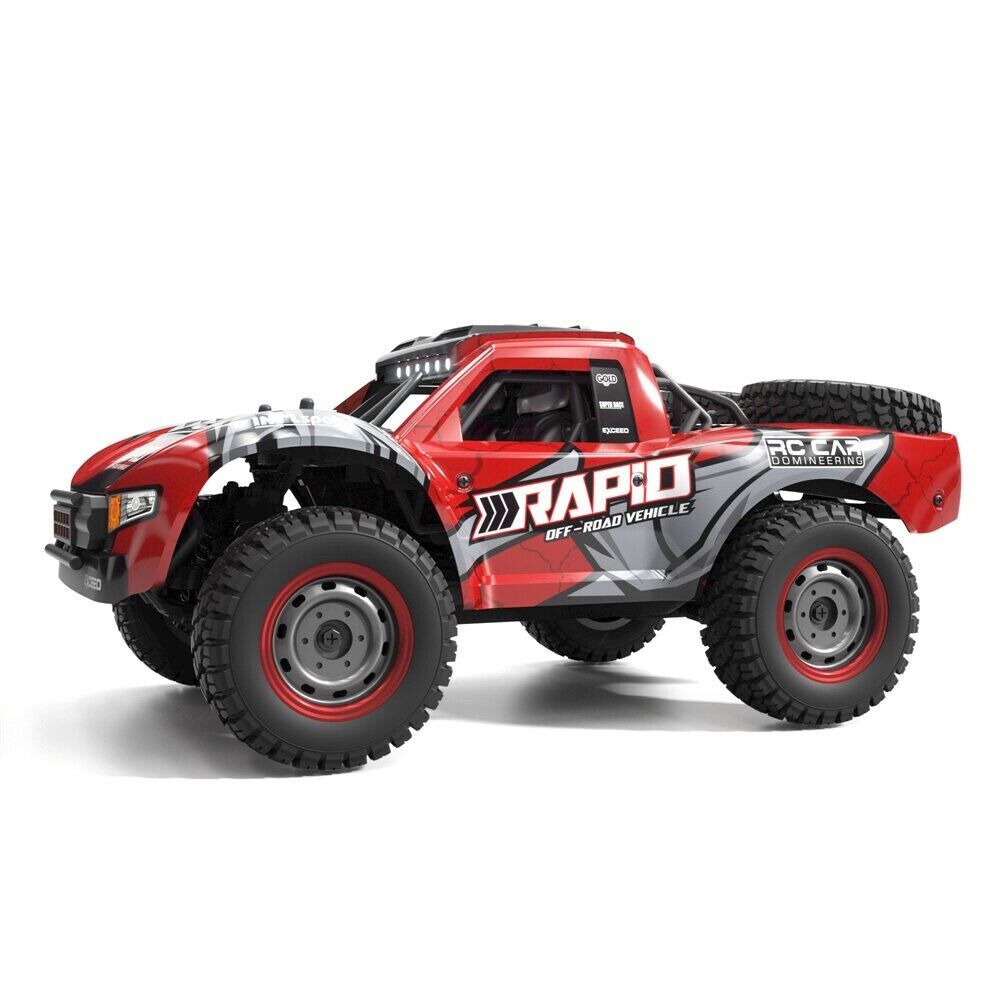

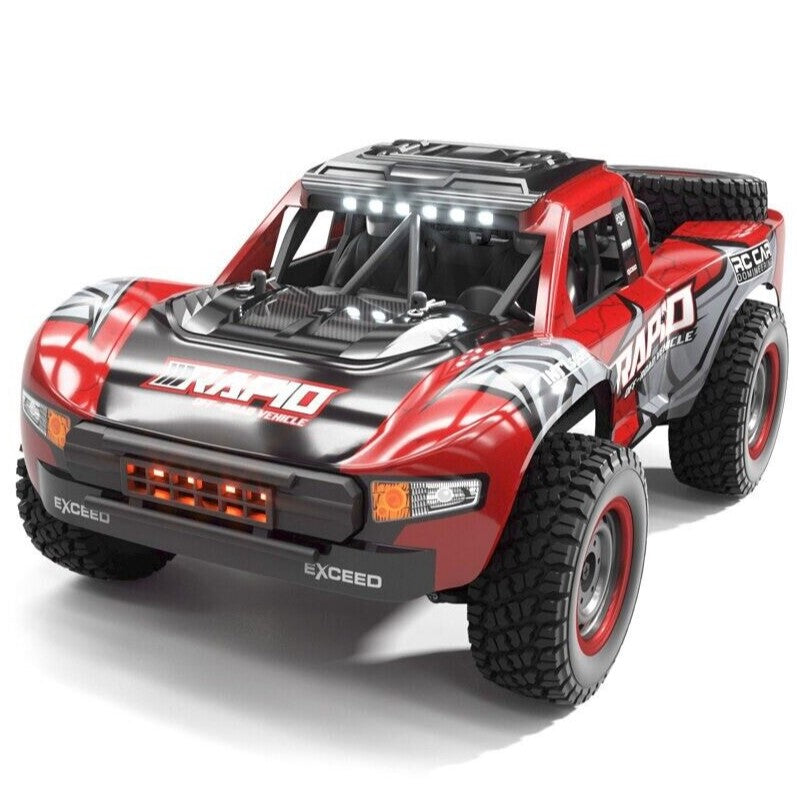

JJRC Q130 1/14 4X4 Brushless Off-Road RC Car, 34MPH (Red)

JJRC Q130 1/14 4X4 Brushless Off-Road RC Car, 34MPH (Red)

Regular price $149.99 USD
Regular price Sale price $149.99 USD
Sale Sold out
Shipping calculated at checkout.
View full details



Description:

Basic information


Models:Q130 B brushless

Model:1/14

Speed:34mmph

Power system

35A ESC and receiver are 2 in 1

Motor:2840 4000kv brushless

Servo:3 Line

LED headlights, LED roof lights, LED tail lights

Transmitter

Frequency:2.4 GHZ

Battery: 3XAA battery(not included)

Battery:

7.4V 1500mAH 15C Li battery (T plug)

others

Charge time:180-210min

Using time:15-18 min

Control distance:120m

Function: forward, backward, left, right

Proportional control:

Dimension

Size:34.5*20.5*14.8 CM

Transmitter size:13*7.5*21 CM

Wheelbase:18.8 cm

Axle base:18.5cm

Tire:8.5cm

Package size:57.5*36.5*53.5 CM

Car weight:1160g

Package weight::1900g



Attention:

1: Charging protection: constant current and constant voltage balanced charging, protection function for battery overcharge and overcurrent.

2: Motor anti-jamming protection: When overloaded, the motor stops working.

3: High temperature protection: When the working temperature is higher than the setting, the drive control circuit stops working, and resumes working after the temperature drops to a safe value.



4: ESC low-voltage power-off function, when the battery is lower than 6.3-6.4V, it will automatically power off to prevent the battery from being damaged due to over-discharge.





Function:

1. Using the simulation structure design, it has the control feeling of a real car, and realizes full-scale continuously variable transmission, high-speed driving, rapid acceleration, deceleration, braking, reversing, left turn, right turn;

2. Applicable venues: flat ground, sandy ground, muddy ground, grassland.

3. Four-wheel drive: front and rear upright spring shock absorption, double wishbone independent suspension system;

4. 2.4G full-scale synchronous remote control system. Full-scale throttle/steering;

5. Metal differential, metal differential cup, powder planetary gear, powder driving gear, powder main gear;

6. Metal CVD front drive shaft, metal rear dog bone, metal wheel cup;

7. Three-line 17G digital steering gear;

8. 7.4V, 18650-1500mAh Li-ion battery (T plug), discharge rate 15C;

9. New remote control panel function: rudder size adjustment;

10. The whole car adopts 16 ball bearings;

11. Metal second floor, metal front and rear arm yards, metal middle drive shaft;

12. The car shell is made of high toughness explosion-proof PVC car shell;

13. The car shell is equipped with LED headlights, LED roof lights, and LED tail lights; (three modes: constant light, slow flash, fast flash);



14. Simulated off-road tires with strong grip;
